| 产品型号 Mode |

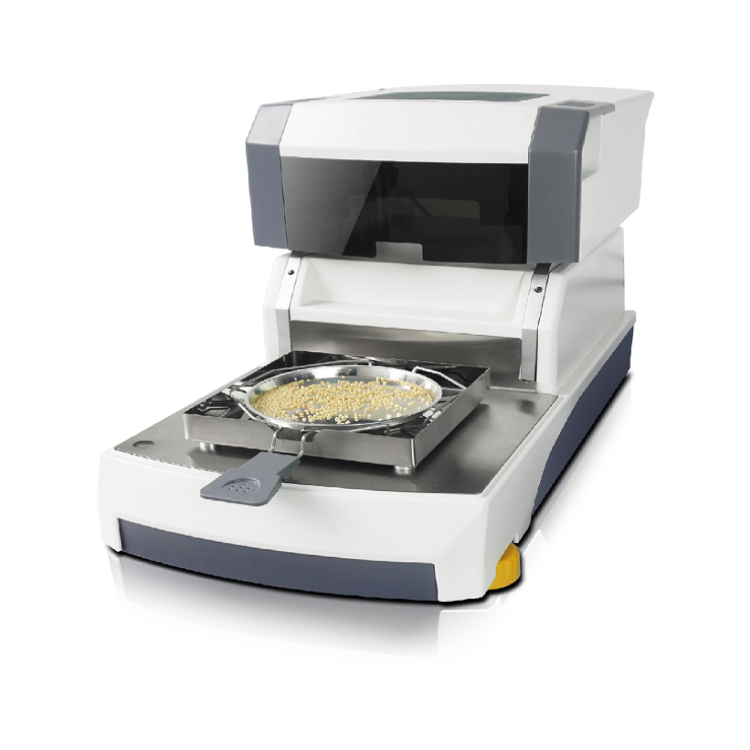

DH-110-230S |
| *大称量 Range (g) |
110g |
| 读数精度 Readability(g) |
0.001g |
| 使用温度 Operating Temp |
5℃-35℃ |
| 秤盘尺寸 Pan Size |
Ø100mm |
| |
| 加热方式 Heat Source |
卤素灯 Halogen Lamp |
| 温度传感器 Temp.Sensor |
PT 100 |
| 温度范围 Temp. Range |
40℃-230℃ |
| 温度间隔 Temp.Step |
1℃ |
| |
| 水分范围 Moisture Range |
0.00%-100.00% |
| 水分可读精度 Moisture Readability |
0.01% |
| 干燥剩余范围 Dry Residual Range |
100.00%-0.00% |
| 干燥剩余可读Dry Residual Readability |
0.01% |
| ATRO |
100%-999% |
| ATRO |
0%-999% |
| |
| 温度设定 Temp Setting |
40℃-230℃ By 1℃ Step |
| 时间设定 Time Setting |
1-99min by 10 s |
| |
| 储存地址 Number Of Storage |
20 |
| 历史记录 Number Of History |
20 |
| |
| 加热部分 Heater |
220V ±15% 50HZ/
110V±15% 60HZ
400W |
| 天平部分 Balance |
Input: 220V 50HZ/110V 60HZ
Output:9V |
| 机械部分 Machine |
Input: 220V 50HZ/110V 60HZ
Output:24V
双驱(Dual-drive) |
| |
| 主机尺寸 Host Dimension |
215X195X415mm |
| 仪表尺寸 Indicator Dimension |
200X75X135mm |
| 操作高度 Operation Height |
275mm |
| 加热舱高度 The Chamber Height |
35mm |
| |
| 显示方式 Display |
7寸高清触控显示/7 inch touch panel |
| 输出端口 Interface |
RS232/RJ45/USB... |
| 通讯方式 Communication Mode |
网线Cable |
| 蓄电池 Rechargeable Battery |
无 No |
| |
| 校准方式 Calibration |
砝码校准 External Calibration |
| 功能扩展 Function expansion |
可定制 Customized |
| 包装尺寸 Packing Size |
610x410x480mm |
| 毛重 G.Weight |
10kg |
